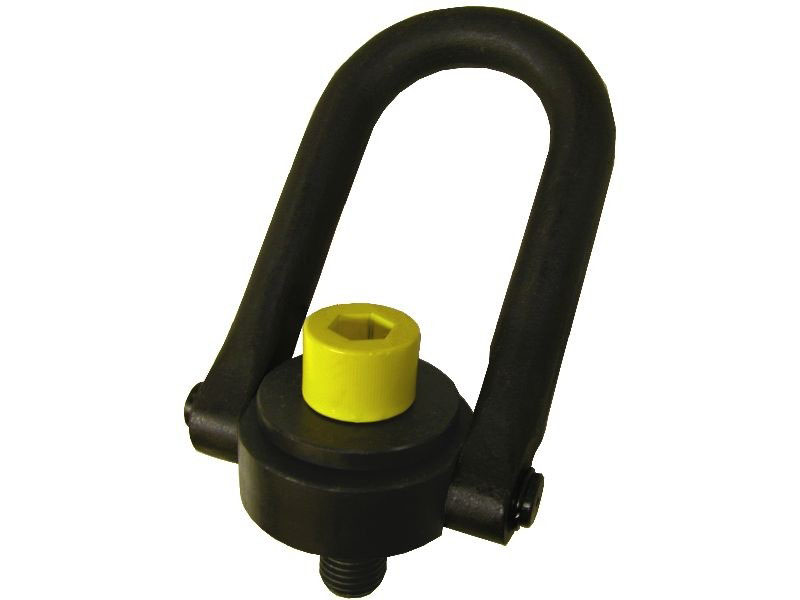

Safty Swivel Hoist Rg (inch)

Technology

5 : 1 Safety factor
200% Proof-Load tested
Serial number for traceability
Swivels 360° and pivots 180°
Magnetic particle spected (ASME Section 5, Article 7 )
Simple mountg
Material:AISI 4140 Aircraft Quality Chrome-Moly
Heat treatment:MIL-H-6875
Actek hoist rgs meet or exceed all the requirements of ASME B30.26.

Part Number	Rated Load	Thread Size	A	B	C	D	E	F	G	H	I	Torque	Weight
Part Number	lbs	Thread Size	inch									ft-lbs	lbs
46100	600	1/4" - 20	0.47	1.38	0.71	3/8	0.54	2.72	1.91	1	0.85	6	0.3
46102	800	5/16" - 18	0.47	1.32	0.71	3/8	0.29	2.72	1.91	1	0.85	7	0.3
46104	800	5/16" - 18	0.47	1.32	0.71	3/8	0.54	2.72	1.91	1	0.85	7	0.3
46106	1,000	3/8" - 16	0.47	1.26	0.71	3/8	0.54	2.72	1.91	1	0.85	12	0.3
46351	1,250	7/16" - 14	0.47	1.20	0.73	3/8	0.79	2.74	1.91	1	0.99	22	0.4
46606	2,000	7/16" - 14	.71	1.95	0.93	1/2	1.07	3.81	2.66	1.49	1.2	22	1
46000	2,000	7/16" - 14	.92	2.52	1.23	3/4	0.78	4.93	3.66	1.98	1.45	22	2.6
46638	2,000	7/16" - 14	.92	4.42	1.23	3/4	0.78	6.83	3.66	1.98	1.45	22	2.6
46352	1,500	1/2" - 13	0.47	1.13	0.73	3/8	0.79	2.74	1.91	1	0.99	28	0.4
46602	2,500	1/2" - 13	.71	1.88	0.93	1/2	1.07	3.81	2.66	1.49	1.2	28	1
46008	2,500	1/2" - 13	.92	2.46	1.23	3/4	0.78	4.93	3.66	1.98	1.45	28	2.6
46010	2,500	1/2" - 13	.92	2.46	1.23	3/4	1.03	4.93	3.66	1.98	1.45	28	2.6
46012	2,500	1/2" - 13	.92	2.46	1.23	3/4	1.28	4.93	3.66	1.98	1.45	28	2.6
46644	2,500	1/2" - 13	.92	4.36	1.23	3/4	0.78	6.83	3.66	1.98	1.45	28	2.6
46646	2,500	1/2" - 13	.92	4.36	1.23	3/4	1.03	6.83	3.66	1.98	1.45	28	2.6
46648	2,500	1/2" - 13	.92	4.36	1.23	3/4	1.28	6.83	3.66	1.98	1.45	28	2.6
46007	2,500	9/16" - 12	.92	2.39	1.23	3/4	0.78	4.93	3.66	1.98	1.45	30	2.6
46651	2,500	9/16" - 12	.92	4.29	1.23	3/4	0.78	6.83	3.66	1.98	1.45	30	2.6
46002	4,000	5/8" - 11	.92	2.33	1.23	3/4	0.78	4.93	3.66	1.98	1.45	60	2.6
46004	4,000	5/8" - 11	.92	2.33	1.23	3/4	1.03	4.93	3.66	1.98	1.45	60	2.6
46006	4,000	5/8" - 11	.92	2.33	1.23	3/4	1.28	4.93	3.66	1.98	1.45	60	2.6
46005	4,000	5/8" - 11	.92	2.33	1.23	3/4	1.53	4.93	3.66	1.98	1.45	60	2.6
46641	4,000	5/8" - 11	.92	4.23	1.23	3/4	0.78	6.83	3.66	1.98	1.45	60	2.6
46640	4,000	5/8" - 11	.92	4.23	1.23	3/4	1.03	6.83	3.66	1.98	1.45	60	2.6
46642	4,000	5/8" - 11	.92	4.23	1.23	3/4	1.28	6.83	3.66	1.98	1.45	60	2.6
46643	4,000	5/8" - 11	.92	4.23	1.23	3/4	1.53	6.83	3.66	1.98	1.45	60	2.6
46014	5,000	3/4" - 10	.92	2.21	1.23	3/4	1.03	4.93	3.66	1.98	1.45	100	3
46018	5,000	3/4" - 10	.92	2.21	1.23	3/4	1.53	4.93	3.66	1.98	1.45	100	3
46650	5,000	3/4" - 10	.92	4.11	1.23	3/4	1.03	6.83	3.66	1.98	1.45	100	3
46654	5,000	3/4" - 10	.92	4.11	1.23	3/4	1.53	6.83	3.66	1.98	1.45	100	3
46204	7,000	3/4" - 10	1.41	3.14	1.71	1	1.04	6.60	5.16	3	2.2	100	7
46206	7,000	3/4" - 10	1.41	3.14	1.71	1	1.54	6.60	5.16	3	2.2	100	7
46658	7,000	3/4" - 10	1.41	4.73	1.71	1	1.04	8.19	5.16	3	2.2	100	7
46660	7,000	3/4" - 10	1.41	4.73	1.71	1	1.54	8.19	5.16	3	2.2	100	7
46353	6,000	7/8" - 9	.92	2.08	1.25	3/4	1.53	4.95	3.66	1.98	1.99	160	3
41604	6,000	7/8" - 9	.92	3.98	1.25	3/4	1.53	6.83	3.66	1.98	1.99	160	3
46202	8,000	7/8" - 9	1.41	3.02	1.71	1	1.04	6.60	5.16	3	2.2	160	7
46203	8,000	7/8" - 9	1.41	3.02	1.71	1	1.29	6.60	5.16	3	2.2	160	7
46205	8,000	7/8" - 9	1.41	3.02	1.71	1	1.54	6.60	5.16	3	2.2	160	7
46656	8,000	7/8" - 9	1.41	4.61	1.71	1	1.04	8.19	5.16	3	2.2	160	7
46657	8,000	7/8" - 9	1.41	4.61	1.71	1	1.29	8.19	5.16	3	2.2	160	7
46655	8,000	7/8" - 9	1.41	4.61	1.71	1	1.54	8.19	5.16	3	2.2	160	7
46354	6,500	1" - 8	.92	1.96	1.25	3/4	1.53	4.95	3.66	1.98	1.99	230	3
41606	6,500	1" - 8	.92	3.86	1.25	3/4	1.53	6.85	3.66	1.98	1.99	230	3
46210	10,000	1" - 8	1.41	2.89	1.71	1	1.29	6.60	5.16	3	2.2	230	7.5
46212	10,000	1" - 8	1.41	2.89	1.71	1	1.54	6.60	5.16	3	2.2	230	7.5
46214	10,000	1" - 8	1.41	2.89	1.71	1	2.29	6.60	5.16	3	2.2	230	7.5
46662	10,000	1" - 8	1.41	4.48	1.71	1	1.29	8.19	5.16	3	2.2	230	7.5
46664	10,000	1" - 8	1.41	4.48	1.71	1	1.54	8.19	5.16	3	2.2	230	7.5
46666	10,000	1" - 8	1.41	4.48	1.71	1	2.29	8.19	5.16	3	2.2	230	7.5
46216	10,000	1 1/8" - 7	1.41	2.77	1.71	1	2.29	6.60	5.16	3	2.2	230	7.5
46668	10,000	1 1/8" - 7	1.41	4.36	1.71	1	2.29	8.19	5.16	3	2.2	230	7.5
46217	10,000	1 1/8" - 8	1.41	2.77	1.71	1	2.29	6.60	5.16	3	2.2	230	7.5
46669	10,000	1 1/8" - 8	1.41	4.36	1.71	1	2.29	8.19	5.16	3	2.2	230	7.5
46355	11,500	1 1/4" - 7	1.41	2.64	1.88	1	2.1	6.77	5.16	3	2.7	470	8
41612	11,500	1 1/4" - 7	1.41	4.23	1.88	1	2.1	8.36	5.16	3	2.7	470	8
46802	15,000	1 1/4" - 7	1.76	4.20	2.12	1 1/4	1.89	8.82	6.25	3.76	3.2	470	14
46805	15,000	1 1/4" - 8	1.76	4.20	2.12	1 1/4	1.89	8.82	6.25	3.76	3.2	470	14
46356	12,000	1 3/8" - 6	1.41	2.52	1.88	1	2.1	6.77	5.16	3	2.7	470	8
41614	12,000	1 3/8" - 6	1.41	4.11	1.88	1	2.1	8.36	5.16	3	2.7	470	8
46806	15,000	1 3/8" - 6	1.76	4.07	2.12	1 1/4	1.89	8.82	6.25	3.76	3.2	470	14.5
46807	15,000	1 3/8" - 8	1.76	4.07	2.12	1 1/4	1.89	8.82	6.25	3.76	3.2	470	14.5
46702	20,000	1 3/8" - 6	2	5.36	2.44	1 1/2	2.5	10.67	7.27	4.31	3.7	540	23
46357	12,500	1 1/2" - 6	1.41	2.39	1.88	1	2.1	6.77	5.16	3	2.7	800	8
41616	12,500	1 1/2" - 6	1.41	3.98	1.88	1	2	8.36	5.16	3	2.7	800	8
46359	16,500	1 1/2" - 6	1.75	3.95	2.17	1 1/4	2.8	8.87	6.25	3.76	3.45	800	16
46404	24,000	1 1/2" - 6	2.27	6.50	2.81	1 3/4	2.7	12.56	8.34	4.87	4.15	800	34
46405	24,000	1 1/2" - 8	2.27	6.50	2.81	1 3/4	2.7	12.56	8.34	4.87	4.15	800	34
46360	17,000	1 5/8" - 5 1/2	1.76	3.83	2.17	1 1/4	2.8	8.87	6.25	3.76	3.45	800	16
46361	17,500	1 3/4" - 5	1.76	3.70	2.17	1 1/4	2.8	8.87	6.25	3.76	3.45	800	16
46408	24,000	1 3/4" - 5	2.27	6.25	2.81	1 3/4	3.2	12.56	8.34	4.87	4.15	800	34
46406	24,000	1 3/4" - 8	2.27	6.25	2.81	1 3/4	3.2	12.56	8.34	4.87	4.15	800	34
46362	18,000	1 7/8" - 5	1.76	3.58	2.17	1 1/4	2.8	8.87	6.25	3.76	3.45	800	16
46363	18,500	2" - 4 1/2	1.76	3.45	2.17	1 1/4	2.8	8.87	6.25	3.76	3.45	800	16
46400	30,000	2" - 4 1/2	2.27	6	2.81	1 3/4	3.2	12.56	8.34	4.87	4.15	800	36
46440	30,000	2" - 8	2.27	6	2.81	1 3/4	3.2	12.56	8.34	4.87	4.15	800	36
46431	30,000	2 1/4" - 4 1/2	2.27	5.75	3.01	1 3/4	3.2	12.56	8.34	4.87	4.15	800	40
46435	30,000	2 1/4" - 8	2.27	5.75	3.01	1 3/4	3.2	12.56	8.34	4.87	4.15	800	40
46364	32,500	2 1/4" - 4 1/2	2.27	5.75	3.01	1 3/4	2.9	12.78	8.34	4.87	4.7	800	40
46365	35,000	2 1/2" - 4	2.27	5.50	3.01	1 3/4	3.9	12.78	8.34	4.87	4.7	2,100	40
46368	35,000	2 1/2" - 8	2.27	5.50	3.01	1 3/4	3.9	12.78	8.34	4.87	4.7	2,100	40
47006	50,000	2 1/2" - 4	3	7.71	4.10	2 1/4	4	16.56	10.72	6.52	5.4	2,100	88
47002	50,000	2 1/2" - 8	3	7.71	4.10	2 1/4	4	16.56	10.72	6.52	5.4	2,100	88
47008	50,000	2 3/4" - 4	3	7.71	4.10	2 1/4	4	16.56	10.72	6.52	5.4	2,100	90
47010	50,000	2 3/4" - 8	3	7.47	4.35	2 1/4	4	16.81	10.72	6.52	5.4	2,100	90
46366	55,000	2 3/4" - 4	3	7.47	4.35	2 1/4	4	16.81	10.72	6.52	5.95	2,100	92
46367	60,000	3" - 4	3	7.22	4.35	2 1/4	5	16.81	10.72	6.52	5.95	4,300	92
47200	75,000	3" - 4	3.75	8.46	5.28	2 3/4	5.25	19.5	14.15	8.1	6.45	4,300	166
47202	75,000	3" - 8	3.75	8.46	5.28	2 3/4	5.25	19.5	14.15	8.1	6.45	4,300	166
46332	80,000	3 1/2" - 4	3.75	8.45	5.28	2 3/4	5	19.5	14.12	8.1	6.45	5,100	172
46334	80,000	3 1/2" - 8	3.75	8.45	5.28	2 3/4	5	19.5	14.12	8.1	6.45	5,100	172
47402	100,000	3 1/2" - 4	4	8.92	6.77	3 1/4	7	22.03	16.79	8.5	8	5,100	265
47406	100,000	3 1/2" - 8	4	8.92	6.77	3 1/4	7	22.03	16.79	8.5	8	5,100	265
47602	250,000	6" - 4	6	14	14	5	9	33	25	13		9,900	790

inch type Safty swivel hoist ring total 94 items
