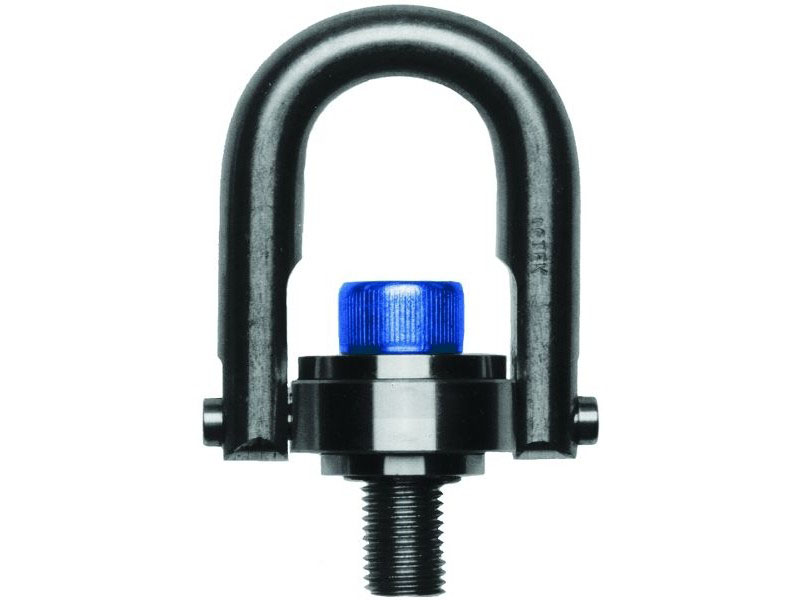

Safty Swivel Hoist Ring (Meter)

Technology

5 : 1 Safety factor
200% Proof-Load tested
Serial number for traceability
Swivels 360° and pivots 180°
Magnetic particle inspected (ASME Section 5, Article 7 )
Simple mounting - only one thread or hole necessary
Material:AISI 4140 Aircraft Quality Chrome-Moly
Heat treatment:MIL-H-6875
Actek hoist rings meet or exceed all the requirements of ASME B30.26.

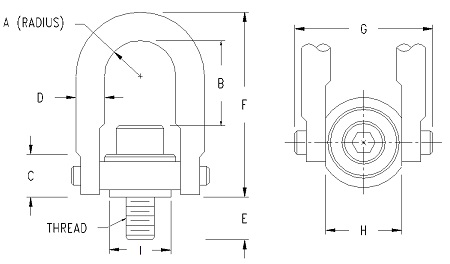

Technical data

Part Number	Rated Load (kg)	Thread Size	A	B	C	D	E	F	G	H	I	Torque	Weight
Part Number	Rated Load (kg)	Thread Size	mm									Nm	lbs
46910	250	M6 x 1.00	12	35	18	10	13	69	49	25	22	6	.4
46912	400	M8 x 1.25	12	33	18	10	13	69	49	25	22	9	.4
46913	400	M8 x 1.25	12	33	18	10	18	69	49	25	22	9	.4
46916	500	M10 x 1.50	12	31	18	10	18	69	49	25	22	16	.4
49301	625	M12 x 1.75	12	29	19	10	23	70	49	25	25	37	.4
46608	1,050	M12 x 1.75	18	49	24	13	27	97	68	38	31	37	1
46924	1,050	M12 x 1.75	23	63	31	19	19	125	93	50	37	37	2.5
47124	1,050	M12 x 1.75	23	111	31	19	19	174	93	50	37	37	2.5
46928	1,050	M14 x 2.00	23	61	31	19	29	125	93	50	37	40	2.5
47128	1,050	M14 x 2.00	23	109	31	19	29	174	93	50	37	40	2.5
46933	1,900	M16 x 2.00	23	59	31	19	24	125	93	50	37	80	2.5
46930	1,900	M16 x 2.00	23	59	31	19	29	125	93	50	37	80	2.5
47126	1,900	M16 x 2.00	23	107	31	19	24	174	93	50	37	80	2.5
47130	1,900	M16 x 2.00	23	107	31	19	29	174	93	50	37	80	2.5
46934	1,900	M18 x 2.50	23	57	31	19	29	125	93	50	37	90	2.5
47134	1,900	M18 x 2.50	23	105	31	19	29	174	93	50	37	90	2.5
46938	2,150	M20 x 2.50	23	55	31	19	29	125	93	50	37	135	2.7
46936	2,150	M20 x 2.50	23	55	31	19	34	125	93	50	37	135	2.7
47132	2,150	M20 x 2.50	23	103	31	19	29	174	93	50	37	135	2.7
47136	2,150	M20 x 2.50	23	103	31	19	34	174	93	50	37	135	2.7
49302	2,650	M22 x 2.50	23	53	32	19	39	126	93	50	51	311	3
49351	2,650	M22 x 2.50	23	101	32	19	39	174	93	50	51	311	3
49303	2,850	M24 x 3.00	23	51	32	19	39	126	93	50	51	311	3
49353	2,850	M24 x 3.00	23	99	32	19	39	174	93	50	51	311	3
46941	3,000	M20 x 2.50	36	79	43	25	27	168	131	76	56	135	6.7
46942	3,000	M20 x 2.50	36	79	43	25	32	168	131	76	56	135	6.7
47140	3,000	M20 x 2.50	36	119	43	25	27	208	131	76	56	135	6.7
47142	3,000	M20 x 2.50	36	119	43	25	32	208	131	76	56	135	6.7
46944	3,000	M22 x 2.50	36	77	43	25	37	168	131	76	56	135	7
47144	3,000	M22 x 2.50	36	117	43	25	37	208	131	76	56	135	7
46947	4,200	M24 x 3.00	36	75	43	25	32	168	131	76	56	311	7
46948	4,200	M24 x 3.00	36	75	43	25	37	168	131	76	56	311	7
47146	4,200	M24 x 3.00	36	115	43	25	32	208	131	76	56	311	7
47148	4,200	M24 x 3.00	36	115	43	25	37	208	131	76	56	311	7
46950	4,200	M30 x 3.50	36	109	43	25	58	208	131	76	56	637	7
49304	5,000	M33 x 3.50	36	66	48	25	42	172	131	76	69	637	8.5
49355	5,000	M33 x 3.50	36	106	48	25	42	212	131	76	69	637	8.5
49305	5,500	M36 x 4.00	36	63	48	25	52	172	131	76	69	1,085	8.5
49357	5,500	M36 x 4.00	36	103	48	25	52	212	131	76	69	1,085	8.5
46956	7,000	M30 x 3.50	45	108	54	32	42	224	159	96	81	637	15
46955	7,000	M30 x 3.50	45	108	54	32	46	224	159	96	81	637	15
46958	7,000	M30 x 3.50	45	108	54	32	62	224	159	96	81	637	15
46957	7,000	M30 x 3.50	45	108	54	32	67	224	159	96	81	637	15
46960	7,000	M33 x 3.50	45	105	54	32	67	224	159	96	81	637	15
49306	8,500	M36 x 4.00	45	102	55	32	56	225	159	96	88	1,085	16
49307	9,000	M39 x 4.00	45	99	55	32	56	225	159	96	88	1,085	17
49308	9,250	M42 x 4.50	45	96	55	32	66	225	159	96	88	1,085	18
49309	9,500	M45 x 4.50	45	93	55	32	66	225	159	96	88	1,085	18
49310	9,500	M46 x 5.00	45	90	55	32	66	225	159	96	88	1,085	18
49311	10,000	M48 x 5.00	45	90	55	32	66	225	159	96	88	1,085	18
46961	10,000	M33 x 3.50	51	138	62	38	58	271	185	109	94	637	23
46962	10,000	M33 x 3.50	51	138	62	38	68	271	185	109	94	637	23
46963	11,000	M36 x 4.00	58	167	71	44	58	319	212	124	105	1,085	35
46966	11,000	M36 x 4.00	58	167	71	44	63	319	212	124	105	1,085	35
46964	11,000	M36 x 4.00	58	167	71	44	68	319	212	124	105	1,085	35
46965	12,500	M42 x 4.50	58	161	71	44	68	319	212	124	105	1,085	36
46968	12,500	M42 x 4.50	58	161	71	44	83	319	212	124	105	1,085	36
46980	13,500	M48 x 5.00	58	155	71	44	68	319	212	124	105	1,085	38
46970	13,500	M48 x 5.00	58	155	71	44	83	319	212	124	105	1,085	38
46979	13,500	M48 x 5.00	58	155	71	44	88	319	212	124	105	1,085	38
49312	14,500	M52 x 5.00	58	151	77	44	83	325	212	124	120	1,085	42
49313	15,500	M56 x 5.50	58	147	77	44	83	325	212	124	120	1,085	42
49314	16,500	M64 x 6.00	58	139	77	44	93	325	212	124	120	2,847	42
46972	22,300	M64 x 6.00	76	195	104	57	101	421	272	166	137	2,847	86
49315	24,500	M72 x 6.00	76	187	110	57	100	427	272	166	151	5,830	92
49316	26,500	M80 x 6.00	76	179	110	57	110	427	272	166	151	5,830	92
46988	31,500	M72 x 6.00	95	219	134	70	132	495	359	206	165	5,830	165
46989	31,500	M80 x 6.00	95	201	134	70	132	495	359	206	165	5,830	165
49317	33,000	M90 x 6.00	95	216	216	70	140	495	359	206	165	6,914	280
46990	44,600	M90 x 6.00	102	227	172	83	178	560	426	216	203	6,914	260
49318	33,000	M100 x 6.00	95	216	216	70	150	495	359	206	165	6,914	280
46994	44,600	M100 x 6.00	102	227	172	83	200	560	426	216	203	6,914	280

Metric type Safty swivel hoist ring total 72 items
