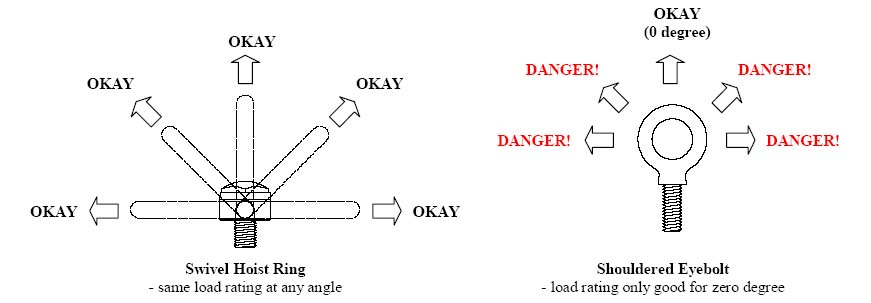

1. Hoist Ring 과 Eyebolt의 비교

Eyebolts는 100여년 이상 사용된 좋은제품이긴하나 원칙적으로, 하중 방향이 0도여야 한다.

만일 eyebolt를 사용한 하중방향이 ±10도 이상 전환되면 eyebolt 는 휘어진다.  eyebolt가 휘어지면 곧 금이간다.

대부분 금이가더라도 외형상으로 보이지는 않지만 엑스레이를 사용하면 손상되었다는 것을 알 수 있다.

이런상태에서 eyebolt 사용한다면 위험해진다.

Swivel Hoist Rings 는 회전 360 °,  중심축 180 °가 가능하기 때문에 어떤각도에서도 들어올릴 수 있게 고안되었다

따라서 힘의 각도와 관계없이 들어올리는 힘은 같다.



2. stainless steel hoist ring의 장점

 내식성(녹 방지)을 제공한다.

정전기방지 니켈 도금형 , 카드뮴 도금형, 아연 도금형 제품도 공급가능하다.

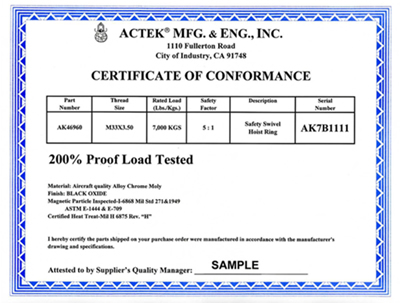

3. 검사성적표 (Certificate of conformance)

모든제품은 일련번호로 추적,관리된다.



4.Warranty

A. Warranties and Disclaimers

Except as expressly provided to the contrary elsewhere, Actek Mfg. & Eng. Inc. makes no, and hereby disclaims all warranties, express, implied, statutory or arising by custom or trade usage or otherwise, including for example, but not limited to the implied warranties of merchantability and fitness for a particular use or purpose, and warranties that any product will I) meet the requirements of the purchaser, II) operate as required by purchaser, or III) operate error free. Actek further disclaims any responsibility whatsoever to the purchaser or to any other third party for any injury to person or property caused by any Actek product regardless of whether that product has been subject to misuse, negligence, accident, improper installation or modification by unauthorized persons. Notwithstanding the above, Actek Mfg. & Eng. Inc. warrants that for the first twelve (12) months from purchase, its product will be free from defects in workmanship and materials and that if any such problem occurs within the warranty period, Actek will repair or replace such products that are returned to Actek Mfg. & Eng. Inc., located at 1110 Fullerton Road - City of Industry, CA 91748 USA. This limited warranty shall not apply to any product that has been misused, repaired or modified by any unauthorized person or if it is used in a manner not consistent with its intended purpose. Upon termination of the aforementioned 12-month period, the purchased product carries no warranty whatsoever. Any authorized adjustments to the product, made pursuant to the warranty does not void the warranty, nor does it imply an extension of the original twelve (12) month warranty period. All products serviced and/or replaced by Actek during the warranty period are subject to and carry the unexpired portion of the original warranty only.

B. Limitations of Liability

Actek Mfg. & Eng. Inc. shall not be liable for any direct, special, indirect, incidental, consequential, punitive or exemplary damages of any kind, irrespective of the form of the action, irrespective of how it arises, and even if Actek knew or had reason to know of the possibility of such damages, irrespective of whether arising from activities performed with its product, or the negligence or other tort of Actek. In addition, Actek
shall not be liable for any non-party claim related to the use of its product. Actek hereby expressly disclaims all such damages. Notwithstanding the foregoing, in the event of any claim for breach of any of Actek's obligations, whether express or implied, and particularly of any other claim or breach of warranty contained in Paragraph A, or of any other warranties, express or implied, or claim of liability that might, despite Paragraph A, be decided against Actek by lawful authority, Actek shall under no circumstances be liable for any consequential damages, losses, or expenses arising in connection with the use of, or inability to use, Actek's product for any purpose whatsoever. If for any reason any of the foregoing provisions shall be ineffective, any claim against Actek for damages arising out of its manufacture or sale of equipment, or use thereof, whether such liability is based on warranty, contract, negligence, strict liability in tort, or otherwise, shall not in any event exceed the full purchase price of the product.

The Laws of the State of California shall govern all disputes arising out of or based upon the use of Actek's products. Any action against Actek based upon any liability or obligation arising hereunder or under any law applicable to the sale of equipment or use thereof, must be commenced within one year after the cause of action arises or is waived.

5.작업환경온도:  -20 degrees to 800 degrees F

6.shor/long bolt (E) hoist ring 공급가능 (단, 표준품보다 가격은 비쌉니다.)
